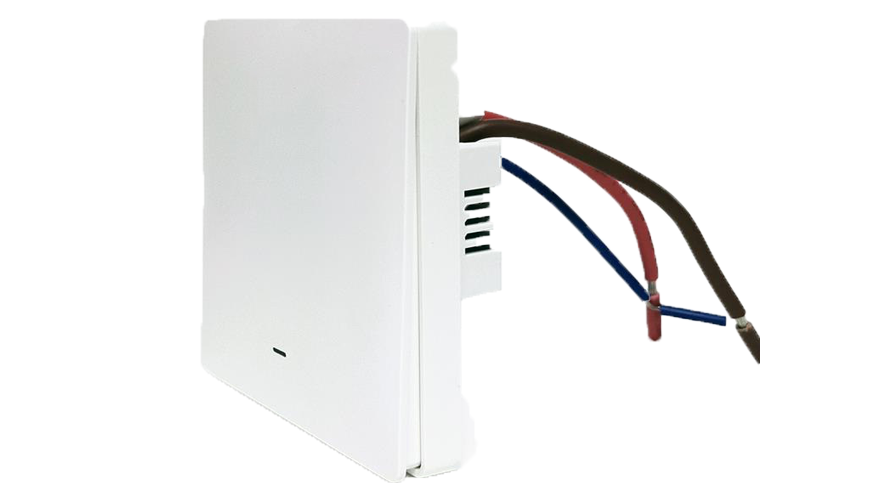

Smart Switch Features
OUR PROUD ADDITION TO THE SMART SERIES OF AKATRONICS SOLUTIONS EQUIPPED WITH LORAWAN TECHNOLOGY
- Support local or remote control via high reliability relay
- Built-in switch indicator, easy to use in dark environment
- Ultra-wide-distance wireless transmission up to line of sight of 2 km.
- Function well with standard LoRaWAN® gateways and network servers
- Compliant with AKATRONICS IoT Cloud
- Support multicast feature to control switches in bulk
- Easy on-site installation
TECHINICAL PARAMETERS
|
Technical Parameter |
Description |
|||
|
Technology |
LoRaWAN ® |
|||
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|||
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
|||
|
Sensitivity |
-137dBm |
|||
|
Mode |
-OTAA/ABP Class C |
|||
Electrical
|
Switches |
1-Gang |
|||
|
Switch Indicator |
Ice Blue |
|||
|
Input Voltage |
100~250 VAC, 50~60 Hz |
|||
|
Maximum Current |
Inductive: 5 A per Gang, Total 10 A |
|||
|
Rated Load |
Max 1000 W per Gang, Total |
|||
|
Terminal |
Terminal |
|||
|
Circuit Type |
3-Wire |
|||
Physical Characteristics
|
Ingress Protection |
IP20 |
|||
|
Material |
Antiflaming Polycarbonate |
|||
|
Color |
White |
|||
|
Dimensions |
86 Type: 86 × 86 × 40 mm (3.39 × 3.39 × 1.57 in) |
|||
|
Operating Temperature |
-20°C to +60°C (-4℉ to +140℉) |
|||
|
Relative Humidity |
0% to 95% (non-condensing) |
|||
