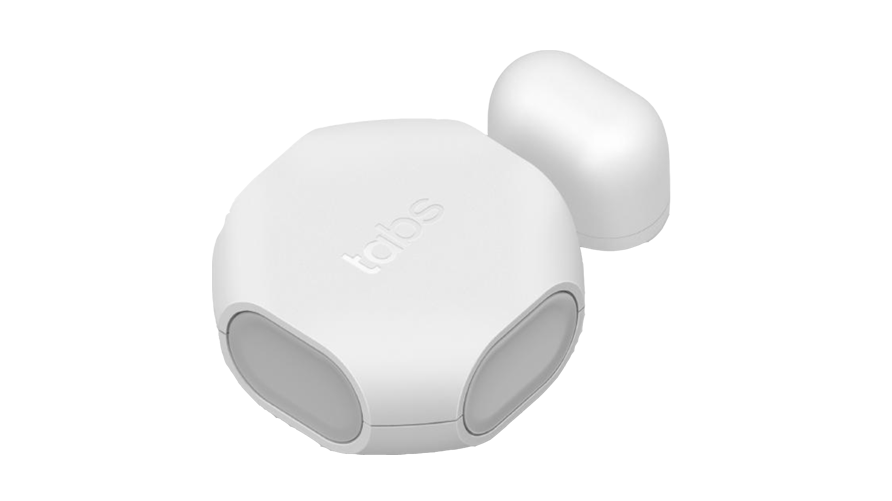

LoRaWAN Door & Window Open Sensor

AKATRONICS AK1S020 Series sensors are designed for indoor intelligent building and Healthy Home applications. Door&Window Open Sensor includes a main hall sensor part and a permanent magnet, the ideal using case is to place the sensor and magnet on separate elements of a door or window to detect if the door or window is open or closed. It is powered up via a common 3.6V ½ AA Lithium Thionyl Chloride battery, typical battery life 3 years without maintenance.Door&Window Open Sensor has four working mode, Periodic reporting mode and Door open, close, open&close alarm mode which are user configurable.AK1S020 sensors support plug & play for global LoRaWAN network operation.

  • RF TX power up to 19dBm, Sensitivity down to -140dBm
  • Full frequency band 470/868/915MHz available
  • Multi- Application mode , Periodic reporting mode and Door open/close alarm mode
  • Enhanced dual-LED, more friendly user indication interface.
  • High performance antenna design: -4dBi peak gain @470 MHz, -2dBi peak gain @868/915 MHz.
  • Optimized power consumption, Low power for 3 years battery life.

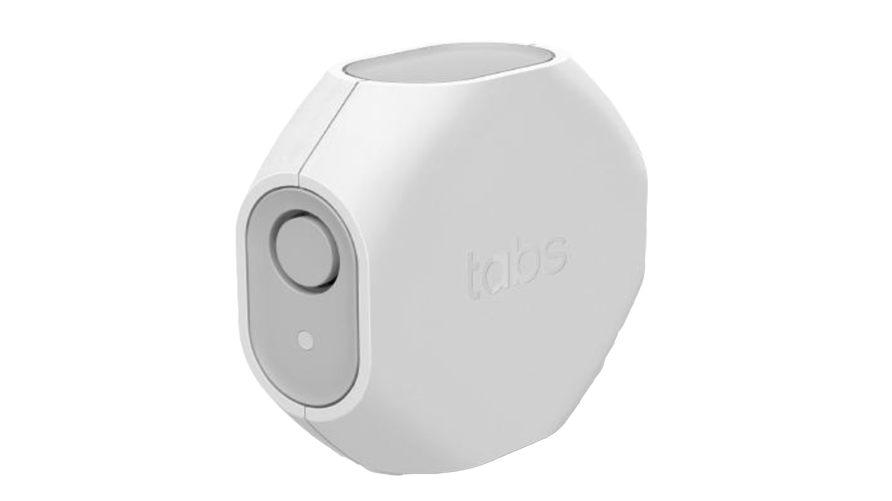

LoRaWAN Home Health Sensor

AKATRONICS AK1S020 Series sensors are designed for indoor intelligent building and Healthy Home applications. Home Health Sensor device includes a Temperature Humidity sensor and a Volatile Organic Compound sensor. The second VOC sensor requires the first Temperature Humidity to compensate for its operating conditions. The ideal using case is to place the sensor in a room to detect temperature, humidity and if the air quality is in good range. It is powered up via a common 3.6V ½ AA Lithium Thionyl Chloride battery, typical battery life 1 years without maintenance. Home Health Sensor has two working mode, Periodic reporting mode and threshold Alarm mode which are user configurable. AK1S020 Sensors support plug & play for global LoRaWAN network operation.

  • RF TX power up to 19dBm, Sensitivity down to -140dBm
  • Full frequency band 470/868/915MHz available
  • Multi- Application mode , Periodic reporting mode and threshold alarm mode which are user configurable.
  • Temperature with ±0.3℃ measurement tolerance and Humidity with ±3 %RH tolerance.
  • Enhanced dual-LED, more friendly user indication interface.
  • High performance antenna design: -4dBi peak gain @470 MHz, -2dBi peak gain @868/915 MHz.
  • Optimized power consumption, Low power for 3 years battery life.
about image
about image

LoRaWAN PIR Motion Sensor

AKATRONICS AK1S020 Series sensors are designed for indoor intelligent building and Healthy Home applications. PIR Motion Sensor includes a pyro-electric Elements based passive infrared detector and a matched Fresnel lens. The ideal using case is to place the sensor in a room to detect if there is person motion or not. It is powered up via a common 3.6V ½ AA Lithium Thionyl Chloride battery, typical battery life 3 years without maintenance. PIR Motion Sensor has three working mode, Periodic reporting mode, intrusion Alarm mode and Room occupation mode which are user configurable. AK1S020 Sensors support plug & play for global LoRaWAN network operation.

  • RF TX power up to 19dBm, Sensitivity down to -140dBm
  • Multi- Application mode , Periodic reporting mode, intrusion Alarm mode and Room

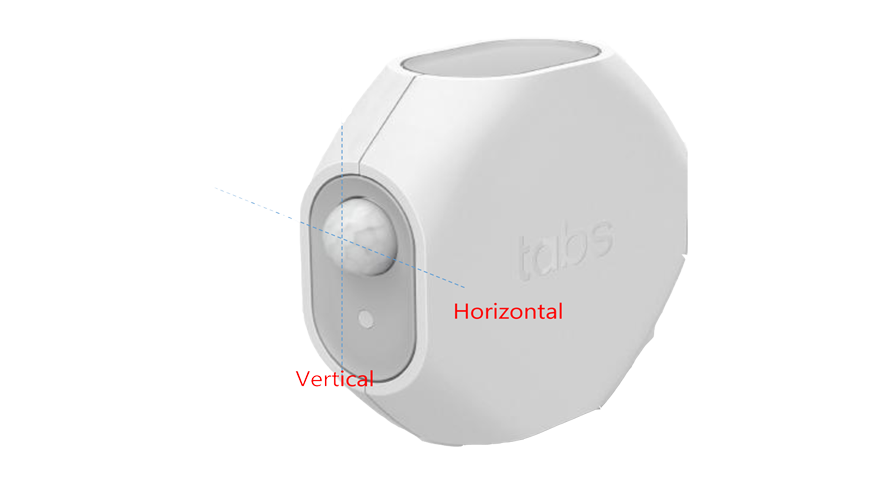

  • Detection area typical 4.5m distance (configurable) with angle 123゜ horizontal and 93゜ vertical
  • Enhanced dual-LED, more friendly user indication interface.
  • High performance antenna design: -4dBi peak gain @470 MHz, -2dBi peak gain @868/915 MHz.
  • Optimized power consumption, Low power for 3 years battery life.
