Smart Parking Sensor Features
OUR PROUD ADDITION TO THE SMART SERIES OF AKATRONICS SOLUTIONS EQUIPPED WITH LORAWAN TECHNOLOGY

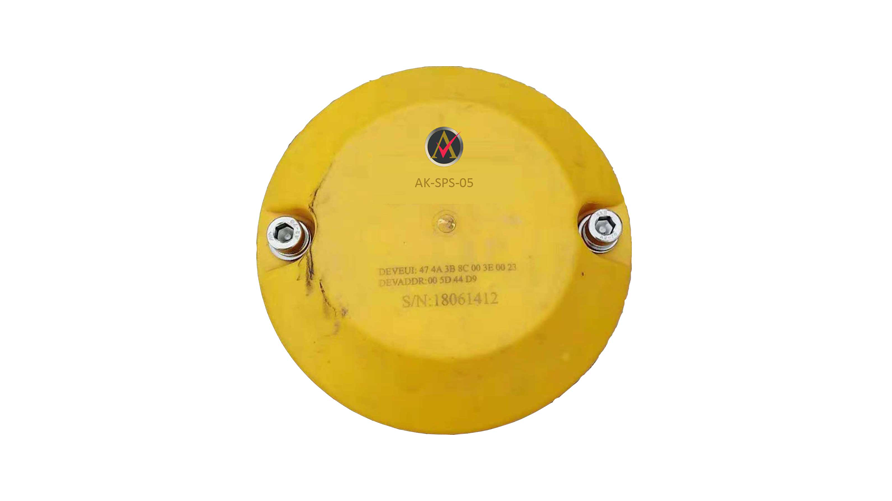

The AK-SPS-05 series of wireless parking sensors use an anisotropic magneto resistive sensor to monitor changes in the magnetic field on the parking space and determine whether the parking space is occupied or free. It is connected to the gateway or network coordinator by various transmission methods such as LORAWAN and NB-IOT, and then transmitted to the server through 4G/Ethernet.
The battery-powered sensor features a low-power design with high detection rate, stable operation, no wiring, easy installation, and simple maintenance, widely used on indoor parking lots, roadside parking lots, open parking lots, and illegal parking detection applications.
Download BrochureTECHINICAL PARAMETERS
Item |
Technical parameters |
Remark |
Frequency |
433MHz/470MHz/868MHz/915MHz/923MHZ |
LoRaWAN |
B1/B3/B5/B8/B20 |
NB-IoT |
|
Equipment type |
Class A |
LoRaWAN |
Antenna interface |
Built-in FPC antenna |
|
Configuring serial port |
9600,n,8,1 |
Open the product cover, and use the serial port for configuration |
Voltage |
3.6V |
Li Battery ER26500+SPC1550 |
Battery Life |
3-5 year |
|
Maximum working current |
＜300mA |
|
Level of protection |
IP68 |
|
material |
PC+ABS material |
|
size |
Ф178mm×42mm (stick to install) Ф86mm×111mm (Embedded mounting) |
|
Operating temperature |
(-25～+85)℃ |
NB-IOT (consumption SIM card) |
(-45～+85)℃ |
LORAWAN/ NB-IOT (instruction SIM card) |
|
Storage temperature |
(-45～+85)℃ |
|
